About this design

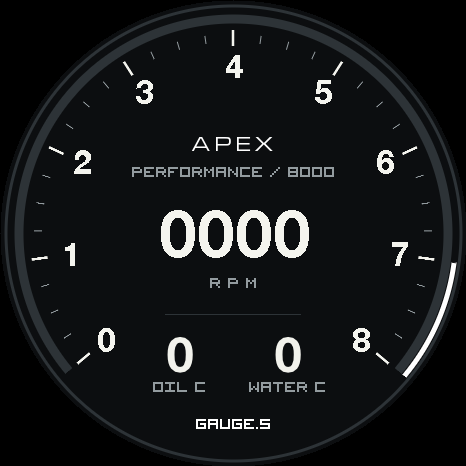

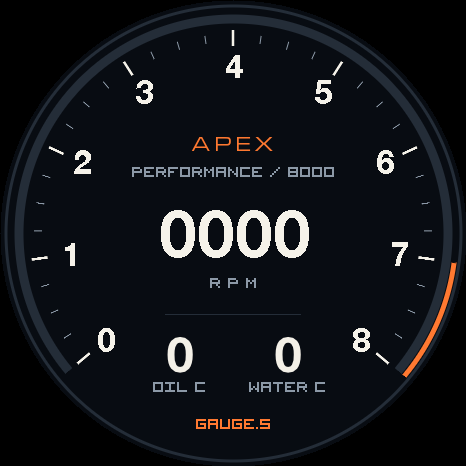

A focused motorsport tachometer: a crisp 0-8000 rpm scale, live perimeter sweep, large digital revs and two understated oil/coolant readouts. A contrasting final 1000 rpm sector and a 7000 rpm shift cue give the dial a purposeful race-instrument feel. The 7000 rpm cue is an editable design setting, not an engine-specific recommendation. Inputs: engine speed (rpm), oil temperature (C), coolant temperature (C). Three editable colour presets are included. Full vector design for the 466 x 466 Gauge.S V6/V6.1 screen; uses built-in fonts, so no external assets or internet connection are required. Bind the declared inputs to your own data sources in the dashboard. Values shown in review images are illustrative telemetry, not embedded demo data.
Rating
No ratings yet
Sign in to rate this design.
Reviews
0 reviews
Community forks (0)
New takes on this design, with credit to the source. Linked forks stay free.
Be the first to share your own version.
Design details
- Format
- V6 color .ogp
- Declared canvas
- 466 × 466
- Current release
- Version 1
Declared input references
- [v0]
- [v1]
- [v2]
Render check passed. These are author-declared references, not verified vehicle compatibility. Units and data sources depend on your device's bindings; live demo ranges are labeled separately.
Latest approved changes
More to explore
Related by independent tags or the same creator.
Bring it to your gauge
Download the .ogp, then open your gauge's dashboard. In Gauges, choose Add → Import from file. After import, choose Active on the new gauge.
